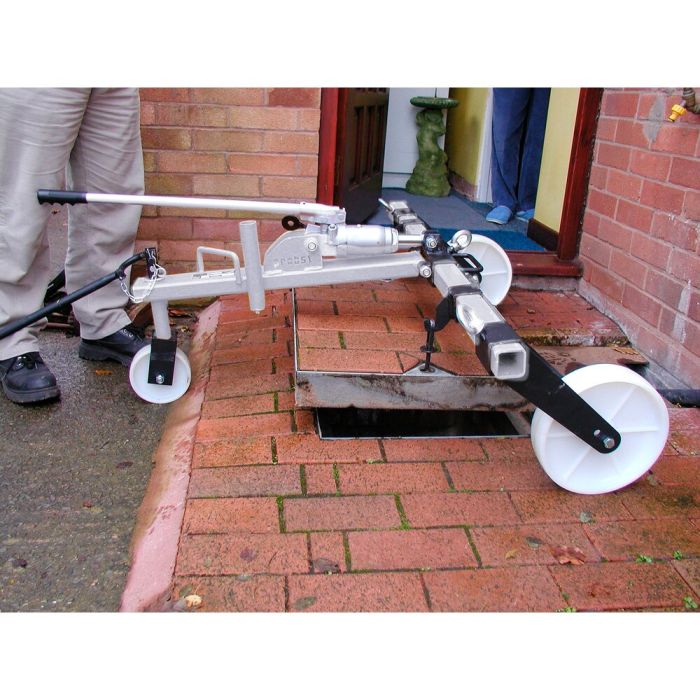

SDH-H-15-UK Hydraulic Manhole Cover Lifter
Heavy duty professional device. Universally suitable to lift and move away all common sizes of covers.
Availability
SKU
54800006
Keys and spreader bars are not included at SDH-H-15.
SDH-15-UK: incl. Set of keys and spreader bars, specially for UK.
- High break-out force
- Can be taken to pieces within seconds in order to be stowed in each car boot.
- Durable surface protection by galvanizing.
| Metric values: | ||
|---|---|---|
| Working Load Limit/WLL | 1500 kg | |
| Weight Dead Weight | 56 kg | |
| Force Pulling Force | 1500 daN | |
| Height Lifting Height | 310 mm | |
| Working Width | 1050 mm | |
| Working Width Hook Centres | 260/950 mm | |
| Imperial values: | ||
| Tragfähigkeit/WLL | 3300 lbs | |
| Dead Weight | 123 lbs | |
| Force Pulling Force | 3372 lbf | |
| Height Lifting Height | 12,20 in | |
| Working Width | 41,34 in | |
| Working Width Hook Centres | 10,24/37,40 in | |
