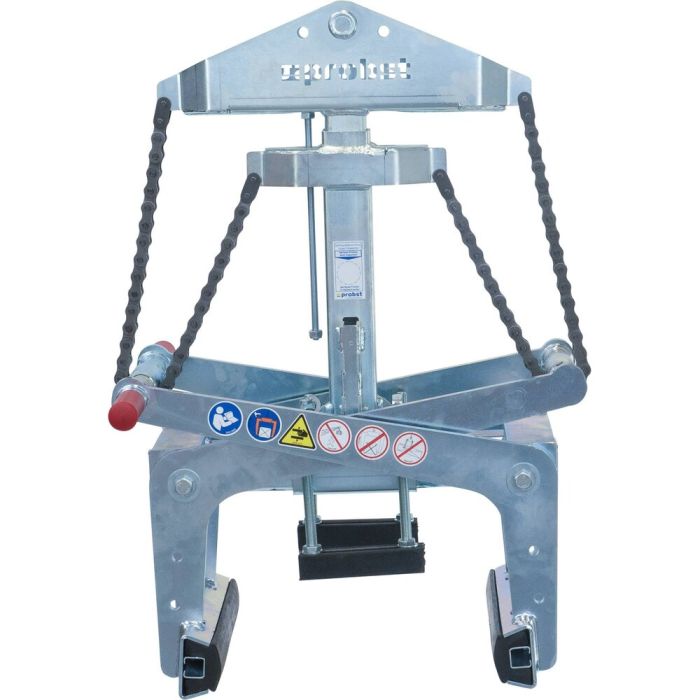

FTZ-UNI-15 Grab for Prefabricated Concrete Products
Availability
SKU
53100256
FTZ-I: special compact clamp for laying heavy granit kerbs.
FTZ-BB: designed kerb stones with high concave section for bus stops („Kassel Kerb“).
FTZ-UNI: Universal clamp for all kind of precast elements.
FTZ-MAXI: As FTZ-UNI but with a very large gripping range.
- Easy Gripping width adjustment by bolt.
- Suspension bolt for lifting device.
- Automatic release for fully automatic switch over from „full“ to „empty“.
- Exchangeable rubber grippers.
- With handles to guide the grab.
- Durable surface protection by galvanizing.
| Metric values: | ||
|---|---|---|
| Working Load Limit/WLL | 1500 kg | |
| Weight Dead Weight | 88 kg | |
| Gripping Range | 0-750 mm | |
| Length of Gripper | 420 mm | |
| Inside Height | 255 mm | |
| Imperial values: | ||
| Tragfähigkeit/WLL | 3307 lbs | |
| Dead Weight | 194 lbs | |
| Gripping Range | 0,00-29,53 in | |
| Length of Gripper | 16,54 in | |
| Inside Height | 10,04 in | |
