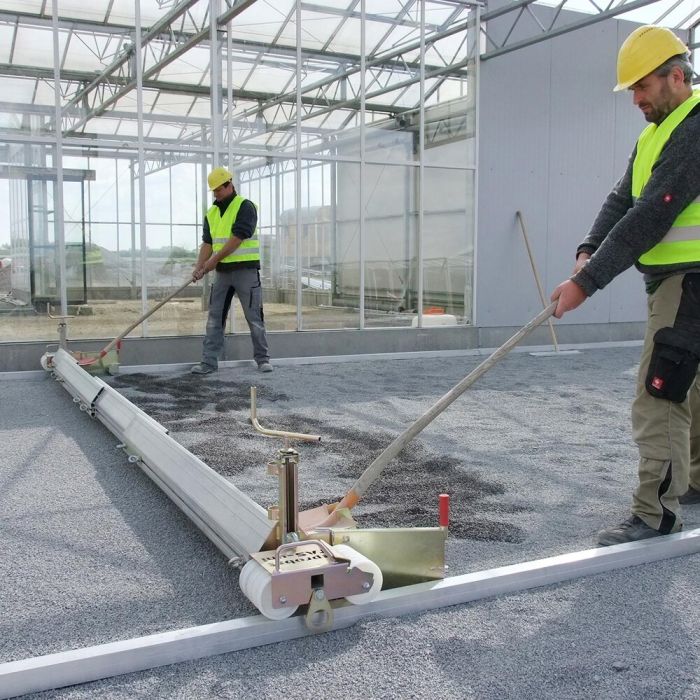

TAS-UNI-600 Telescopic Screeding System

Each side equipped with height adjust­able roller units, including screeding rail cleaning wiper as well as material turn-away metal sheet.
The aluminium profile has been optimized. So the device does neither move upwards when pulled by hand nor when pulled with chains mechanically. In one run a clean and exact screed can be produced.

• The aluminium profile has been optimized. So the device does neither move upwards when pulled by hand nor when pulled with chains mechanically. In one run a clean and exact screed can be produced.
• The profile was increased in order to be able to move more material when the pre-distribution of the screeding material is very rough.
• Working width up to 6,000 mm (20 feet) by duplicating the profile.
• Special aluminium profiles, consisting of a low wear, high-tensile alloy are designed to be fully telescopic with one another, seamlessly. With integrated jam system to lock the telescopic parts in any desired position.
• All metall parts are galvanized.
• Proper height adjustment can be read from a scale (0 – 25 cm / 0 – 9¾ inch).
• For hand operation the TAS can be easily pulled by means of standard shovels while standing in comfortable upright position.

Standard configuration as above, plus 1 Alu-Profile 3,000 mm (118¼ inch) long.
