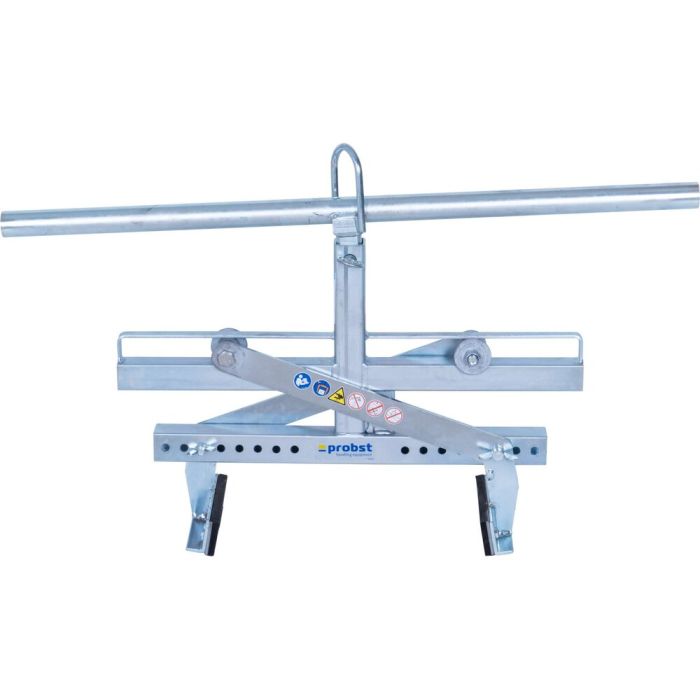

TSV Concrete Step Handles
Universal handles due to a large adjustable opening range. Suitable for steps, kerbs, L-stones, etc.
Availability
SKU
53100435
- Lifting eye for attaching to crane hook.
- Automatic release for fully automatic switch-over from “full” to “empty“.
- Carrying handle.
- Carrying handle turnable by 90° according to the working space.
- Exchangeable rubber grippers.
- Galvanised finish.
| Metric values: | ||
|---|---|---|
| Working Load Limit/WLL | 250 kg | |
| Weight Dead Weight | 19 kg | |
| Gripping Range | 70-500 mm | |
| Length of Gripper | 200 mm | |
| Inside Height | 125 mm | |
| Imperial values: | ||
| Tragfähigkeit/WLL | 551 lbs | |
| Dead Weight | 42 lbs | |
| Gripping Range | 2,76-19,69 in | |
| Length of Gripper | 7,87 in | |
| Inside Height | 4,92 in | |
