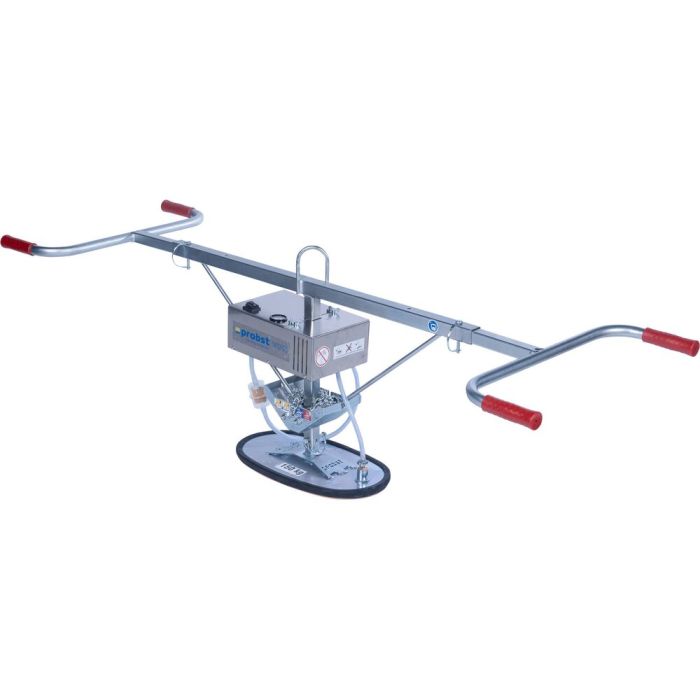

VACUUM-POWER-HANDY VPH-150-GREENLINE Vacuum Hand Laying Device

Flexible and powerful hand operated laying device for dense products, such as granite or high quality concrete elements.

SKU

52710008

Description

Special seal, consisting of 2 components for optimised sealing. Even when the suction plate is sitting on sharp edges for a long time, no permanent marks are left in the seal. Therefore no “foldable rests” are necessary to save guard the seal. Wheel Set VPH-RS can be retrofitted to any VPH device at any time. Thus dense slabs can be installed by just one person.

Powered by rechargeable AGM-AKKU 12 V. Special energy saving automatic allows a full day of laying operation without the need of recharging. Battery charger not included.
Handle for 2 men operation, handles are height and width adjustable to accomodate with different laying tasks.
Vacuum pump unit with manometer and battery charging indicator.
The seal can be exchanged without glue and any tool within 1 minute.
Fitted as standard with chain compartment and load securing chain as well as lifting eye for hoist operation.
Durable surface protection by galvanizing.

Including suction plate with 150 kg (330 Ibs) load capacity.

Technical data

Technical data
Metric values:
Working Load Limit/WLL -500 mbar	150 kg
Weight Dead Weight	16,5 kg
Type of Drive electric/Battery	0,02 kW
Dimensions LxWxH	590x588x1431 mm
Dimensions oval, LxB	440x250 mm
Working Voltage	12 V
Battery Capacity	7,2 Ah
Imperial values:
Working Load Limit/WLL -500 mbar	331 lbs
Weight Dead Weight	36 lbs
Type of Drive electric/Battery	0,02 kW
Dimensions LxWxH	23,25x23,25x56,25 in
Dimensions oval, LxB	17,32x9,84 in
Working Voltage	12 V
Battery Capacity	7,2 Ah
