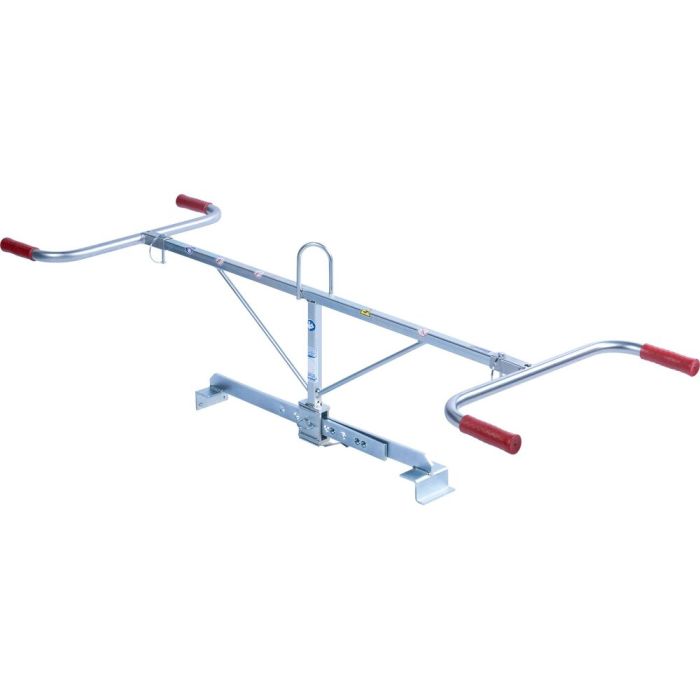

VZ-I Laying Clamp
Especially suitable for handling concrete kerb stones.
Availability
SKU
53100140
- The one-sided angular supports which are placed on the kerb stone already in place enable an extremely narrow joint.
- Grips longitudinally so that it can be used in tightest spaces.
- No deflection of the plumb line.
- All models are equipped with a lifting eye.
- Durable surface protection by galvanizing.
| Metric values: | ||
|---|---|---|
| Working Load Limit/WLL | 100 kg | |
| Weight Dead Weight | 11,3 kg | |
| Gripping Range | 500-1045 mm | |
| Length of Gripper | 100 mm | |
| Inside Height | 40 mm | |
| Imperial values: | ||
| Tragfähigkeit/WLL | 220 lbs | |
| Dead Weight | 25 lbs | |
| Gripping Range | 19,69-41,14 in | |
| Length of Gripper | 3,94 in | |
| Inside Height | 1,57 in | |
