FXAH-120-GRABO-PRO-LIFTER-GREENLINE Vacuum Hand Laying Device

Designed for landscape contractors and tilers, for quick and ergonomic lifting, moving and laying of absorbent concrete slabs, natural stones, tiles and other absorbent building materials.

Availability

Loading...


SKU
58500014
Loading...
Your price:  Your price:

BATTERY-HANDY is placed on building materials, switched on, and then sucks onto the surface without any downward pressure. The vacuum is released again by pressing another switch.
Attachment to optionally available handles or laying trolleys makes the laying of absorbent building materials even more ergonomic and allows larger slabs or up to 2 slabs to be laid at the same time.


With integrated pressure switch. As soon as the required pressure is reached, the pump switches off.
When the vacuum drops, the pump switches on again.
With digital manometer for displaying negative pressure or load capacity.


  • Considerably easier laying, as there is no need to grip on the side, especially for the last slab.
  • Less risk of edge damage, as laying is more precise and with a better view.
  • Light and handy.
  • Ergonomic arrangement of the operating switches.
  • Powered by a rechargeable 14.8 V lithium-ion battery (exchangeable battery concept).
  • Battery life: approx. 1.5 to 2 h in continuous operation, in normal operation up to one day.
  • Increased safety through battery status LED.

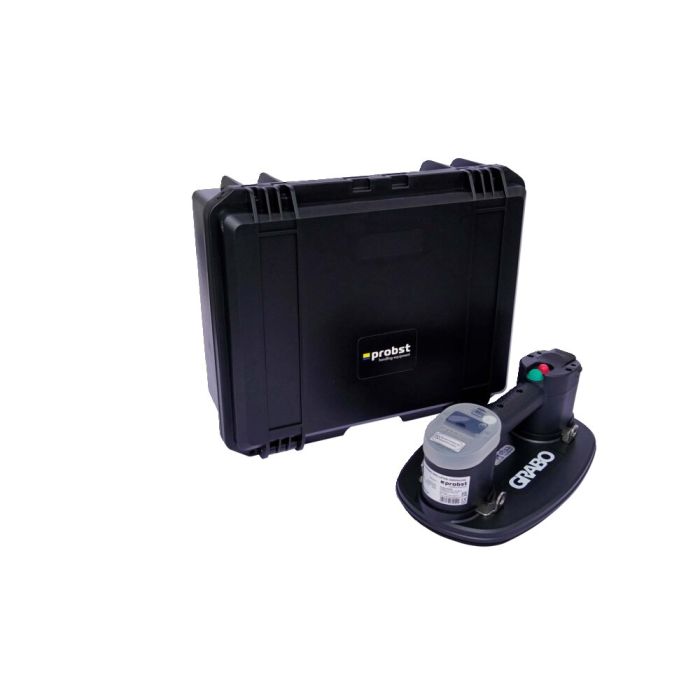

Vacuum hand laying device, Charger (multi-range voltage 110 V to 240 V, with interchangeable plug EU, US, UK, CN)
1 x lithium-ion battery, carrying strap, spare rubber seal and replacement filter.
Supplied in a high-quality, waterproof plastic case.
Technical data
Metric values:
Dimensions LxW300x180 mm
Working Load Limit/WLL120 kg
Weight Dead Weight1,6 kg
Type of Drive electric/Battery0,0016 kW
Weight Total Weight5,5 kg
Battery Capacity2,2 Ah
Imperial values:
Dimensions LxW11,81x7,09 in
Tragfähigkeit/WLL265 lbs
Dead Weight3,53 lbs
Type of Drive electric/Battery0,0016 kW
Weight Total Weight12 lbs
Battery Capacity2,2 Ah
