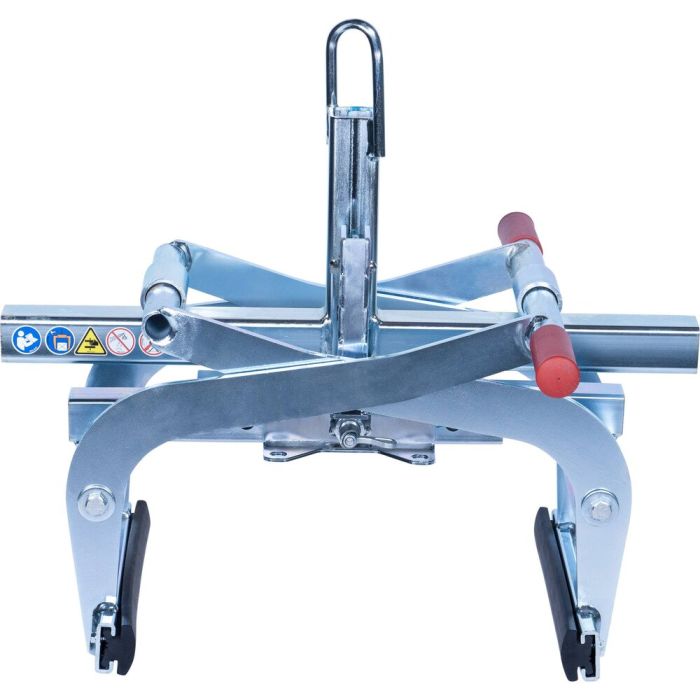

TSZ-UNI-800 Concrete Step Handles
Suitable for handling steps, kerb stones etc. in conjunction with a lifting device.
Availability
SKU
53100451
- Easily adjustable opening width by means of a spring-loaded bolt.
- Considerable inside height. Conical kerb stones are also gripped securely, as the gripper has an inside height of 185 mm (7¼ inch) thus being able to grip underneath the conical form.
- Lifting eye for attaching to crane hook.
- Automatic release for fully automatic switch-over from “full” to “empty”.
- Exchangeable profiled rubber seals.
- Setting the gripping range for TSZ-UNI-800 via scale.
- Galvanised finish.
| Metric values: | ||
|---|---|---|
| Working Load Limit/WLL | 800 kg | |
| Weight Dead Weight | 31 kg | |
| Gripping Range | 50-600 mm | |
| Length of Gripper | 350 mm | |
| Inside Height | 185 mm | |
| Imperial values: | ||
| Tragfähigkeit/WLL | 1764 lbs | |
| Dead Weight | 68 lbs | |
| Gripping Range | 1,97-23,62 in | |
| Length of Gripper | 13,78 in | |
| Inside Height | 7,28 in | |
